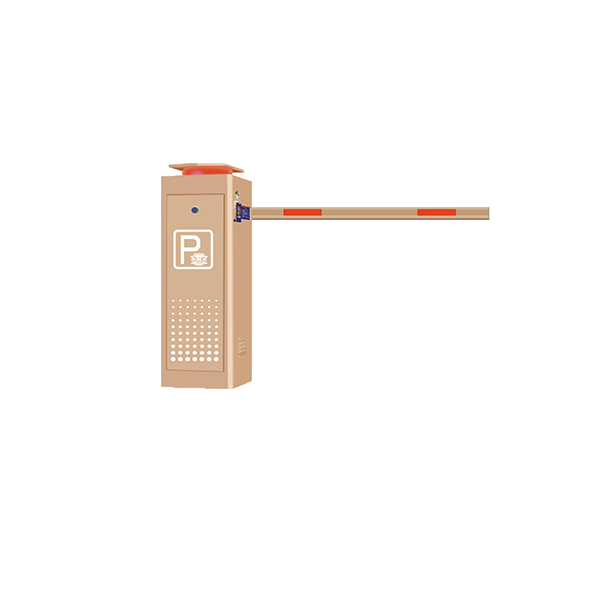

High-Speed Barrier Gate
High-Speed Barrier Gate
Model: RALID-Bar60
System：Parking Control System
Safety: Powered by 24V DC, ensuring personal safety.
Energy-Efficient: Static power consumption <2W; supports motors with a maximum power of 200W.
Adjustable Speed: Independent adjustment of lifting and lowering speeds.
Smooth Operation: Multi-stage speed design ensures linear and stable performance.
Quiet Operation: Noise level below 50dB.
Multiple Protections: Motor overcurrent, overload, short-circuit protection; motor fault protection; reverse polarity protection.
Supports External Remote Control Input.
Auto-Open in Power Failure.
Windproof, Frostproof, and Rustproof.
Multiple Relay Output Modes with Built-in Traffic Light Display.
Operating Voltage: DC24V
Motor Specification: 100W
Operating Temperature: -30°C ~ 80°C
Remote Control Range: ≤30m
Lifting/Lowering Time: Medium speed—3s / Slow speed—6s
Dimensions: 350mm × 235mm × 1030mm
Barrier Pole Center Height from Ground: 880mm
Maximum Pole Length: Medium speed—4.5m / Slow speed—6m
